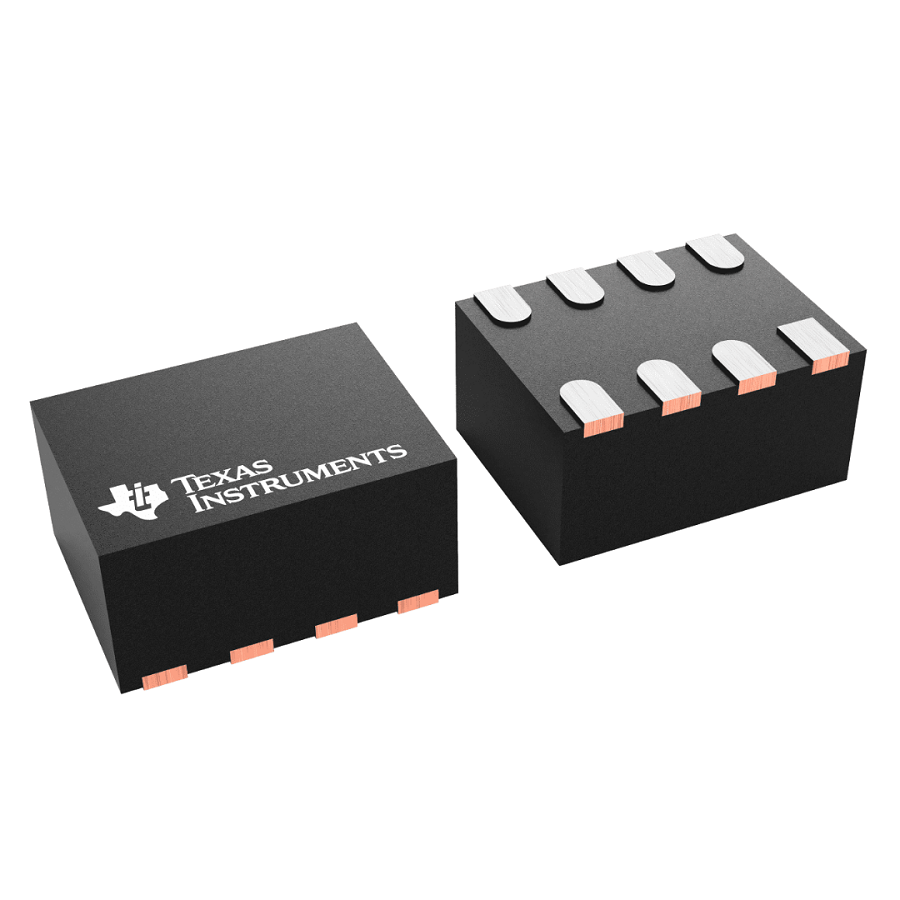

TPS62821DLCR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS62821DLCR
Datasheet:
Description:
Voltage Regulators - Switching VSON-HR-8 SMD/SMT Buck Adjustable 600 mV to 4 V
| Parameter | Value |
|---|---|
| Length | 2 mm |
| Width | 1.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1 mm |
| Packaging | Reel |
| Thickness | 0.9 mm |
| RoHS | Compliant |
| Min Input Voltage | 2.4 V |
| Output Current | 1 A |
| Output Voltage | 600 mV to 4 V |
| Output Type | Adjustable |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.4 V |
| Quiescent Current | 4 µA |
| Topology | Buck |
| Switching Frequency | 2.2 MHz |
| Max Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 4 µA |
| Max Junction Temperature (Tj) | 125 °C |
| Max Duty Cycle | 100 % |
| Schedule B | 8542390000 |
| Function | Step-Down |
Stock: 179
Distributors
pcbx
pcbxUnit Price$0.42518
Ext.Price$0.42518
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42518 | $0.42518 |
| 10 | $0.33206 | $3.32060 |
| 50 | $0.26945 | $13.47250 |
| 100 | $0.21864 | $21.86400 |
| 500 | $0.19584 | $97.92000 |
| 1000 | $0.18217 | $182.17000 |
